API Syntax

last update: 26 june 2011

The Kribi 3D Player Application Programming Interface (API) supplies all the functions for creating rich internet and desktop applications.

The functions are methods belonging to classes, of which every class implements a set of operations and properties to interact with Player behavior and to manipulate the elements of the Model.

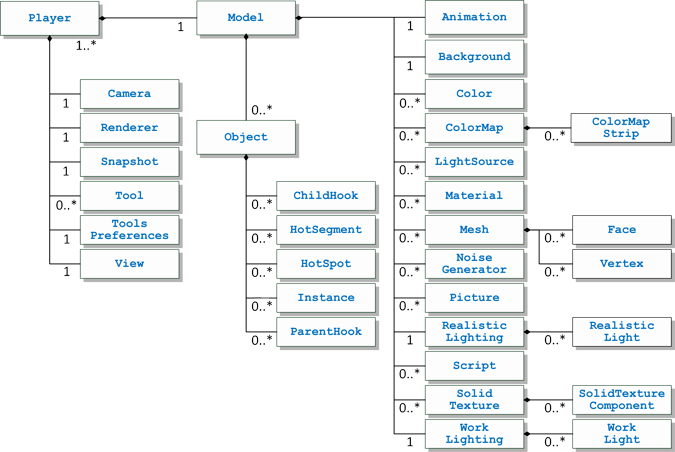

Classes and dependencies

Extended Notation

For all classes with an element multiplicity, the element can be implied indicating the current element, or indicated specifying it’s index or name:


	The class name alone represents the current element.

	Color RGB returns the RGB value of the current color

	The class name followed by a number N enclosed in [ ] indicates the element index of the sequence.

	Color[3] RGB returns the RGB value of the 3rd color

	The class name followed by a string enclosed in [‘ ‘] indicates the element name.

	Color['red'] RGB returns the RGB value of the color named red

Operations

Operations can be performed on elements of the model and on various components of the Kribi 3D Player.

To perform an operation use the notation ClassName – OperationName.

Extended notation is only available for some operations.

Color Copy	Creates a new color by copying all the properties of the current color
Color[index] Copy	Creates a new color by copying all the properties of the specified index color
Color['name'] Copy	Creates a new color by copying all the properties of the specified name color

To perform an operation on a model element, set the element as current or indicate it with an extended notation if available.

Properties

Model elements and each of the components of the Kribi 3D Player have a number of properties, all the properties are read and write.

To set the value of a property, use the notation ClassName – PropertyName – value

Color RGB 255,0,0 sets the current color to red

Setting a property returns its previous value.

To Get the value of a property, leave out the value, use the notation ClassName – PropertyName that returns the value

Color RGB To get the value of the RGB property of the current color, returns 255,0,0.

The extended notation is available for all properties.

Color RGB 255,0,0	Sets the RGB value of the current color.
Color[3] RGB 255,0,0	Sets the RGB value of the 3rd color
Color['red'] RGB 255,0,0	Sets the RGB value of the color named red.

To get or set the property of a model element, set the element as current or indicate it with an extended notation. If you try to set or get a property with no current element it will return an empty string.

JavaScript API Syntax

The use of string value must be enclosed in two single apostrophe ' '.

For a name like RED, the final string becomes ‘RED’

If you are using apostrophe in a string, probably you have come across problems, because it causes the string statement to fail, the solution is to replace every apostrophe in a string with a double apostrophe.

Something like O'Malley, in the final string for an Object Name property looks like:
Object Name ‘O’’Malley’. The second ' escapes the third ', thus leaving the whole property statement complete.

In JavaScript, use the replace() method of the string class and use a regular expression to correct the apostrophe within the string.

var MyObjectName = "O'Malley";
MyObjectName = String(MyObjectName).replace(/'/g, "''")
